FLEX GATEWAY

All the processing power of the FLEX LINE, in a more compact and economical way

Description

The FLEX GATEWAY is one of our Remote Unit solutions that combines in one equipment management, monitoring, remote control and task automation. Primarily indicated for hard-to-reach locations, such as: TV, radio, or Telecom transmission sites in general, FLEX FX allows you to monitor and control any equipment remotely.

The Flex Gateway is ultra compact but don't let it fool you: it is as powerful as other products of the FLEX LINE that you already know, and it was developed with a powerful ARM Cortex A8 processor with embedded Linux and full integration with the SNMP protocol. It has several essential functions, such as the possibility of creating virtual ports, further increasing the monitoring and control capability. In addition, FLEX GATEWAY supports task automation with the SCRIPT function, which is based on conditions that, when achieved, activate certain preconfigured functions in a fully automatic and secure manner, making it easier to monitor and control your equipment 100% remotely.

Disposing of redundancy of communication and the power supply, FLEX GATEWAY has its operation in a continuous and reliable way, even in case of possible outages.

With an easy setup and very simple and intuitive configuration locally by HTTP and SSH, the FLEX FX Remote Unit is the ideal choice for those who are looking to reduce the operative costs, and also guarantees that the amount of needed visits to the transmission site will be reduced. This way, FLEX GATEWAY is undoubtedly the solution in a robust, safe and reliable Telemetry and Control System, and is utilized by many stations around the world.

Control

Management

Efficiency

Costs

Reduction

Please enable captions / Por favor active los subtítulos

Highlights

SNMP MANAGEMENT

  • Management, monitoring and control of any equipment with embedded SNMP;

  • Compatible and manageable with any management software through SNMP.


SCRIPT / TELECOMMAND AUTOMATION

  • Execution of commands based on operating conditions and/or alarm occurrences;

  • Execution of commands at preprogrammed times.


VIRTUAL PORTS

  • Important function that enables adding of features and adjustments to information sent by other equipment’s MIB files, allowing for each OID to establish alarm zones, decimal corrections, and more.


MANAGEMENT SOFTWARE

  • Management and control through TSDA’s HORUS NMS or SYNAPSE SYSTEM softwares.

  • Management and control through TSDA’s HORUS NMS or SYNAPSE SYSTEM software.


​COMMUNICATION REDUNDANCY

  • Integrated 3G modem with dual SIMCARD;

  • TCP/IP Ethernet 10/100;

  • Possibility of using both communication methods (Ethernet + simcard1 + simcard2).

TCP / IP TUNNELING

  • Function that enables access to other equipment web pages (specific IP) through the remote unit, turning it into a 3G router.


PROTECTION AND SECURITY

  • Embedded OpenVPN client for cryptography and data compression of transmitted data;

  • Web control access through user and password.


SERIAL PORT

  • RS-232 serial port availability for interfacing with other equipment;

  • Possibility of integrating with MODBUS protocol and others (upon consultation).


​GENERAL

  • Remote firmware update;

  • Internal memory for logger and data logger information storage.

  • Low energy consumption;

  • Optional battery module with high autonomy;

  • High RF immunity;

  • Local and remote configuration through HTTP and SSH;

  • Alarm and pre-alarm level programming independent for each port;

  • Local recording of system alarms.

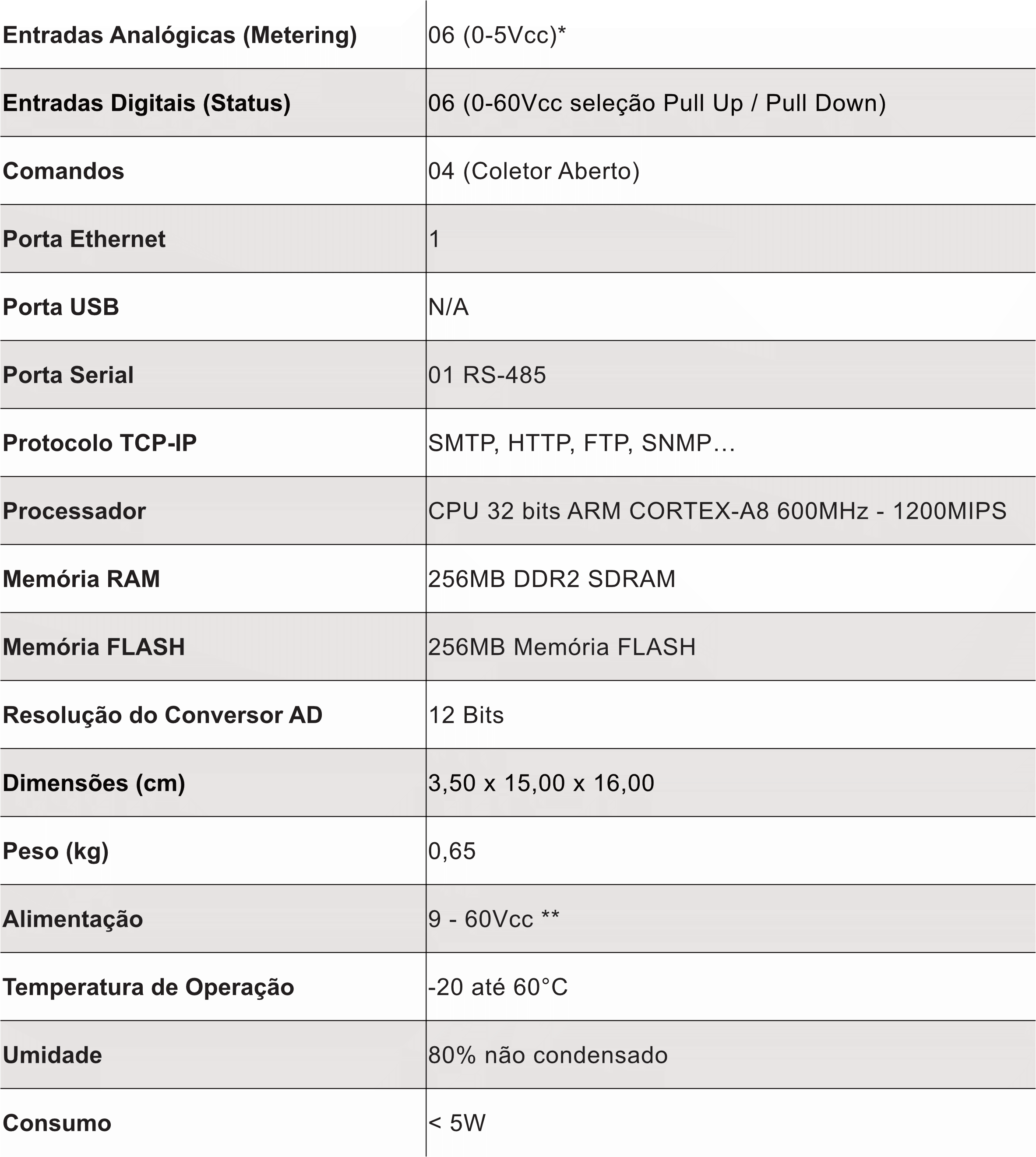

Specifications

TELEMETRY

& CONTROL
